Transaction Isolation Levels With PostgreSQL as an example

Illustration of a person in a chef's hat carving or preparing food, possibly a pumpkin, with focus and care, while a pleased cat looks on from the counter. Illustration of a person in a chef's hat carving or preparing food, possibly a pumpkin, with focus and care, while a pleased cat looks on from the counter.

In this article, I'll explain what transaction isolation levels exist and what you should be aware of as a developer. We will consider only PostgreSQL (version 13) as an example database, so some information may be wrong if you would like to use another database.

For examples in this article, we will use pgcli utility. This is a nice analog for standard Postgres command-line interface that provides syntax highlighting and substitution. It can be easily installed e.g. via the brew package manager.

DevOps consulting: DevOps is a cultural and technological journey. We'll be thrilled to be your guides on any part of this journey. About consulting

There is a well-known database abbreviation ACID. It stands for Atomicity, Consistency, Isolation, and Durability.

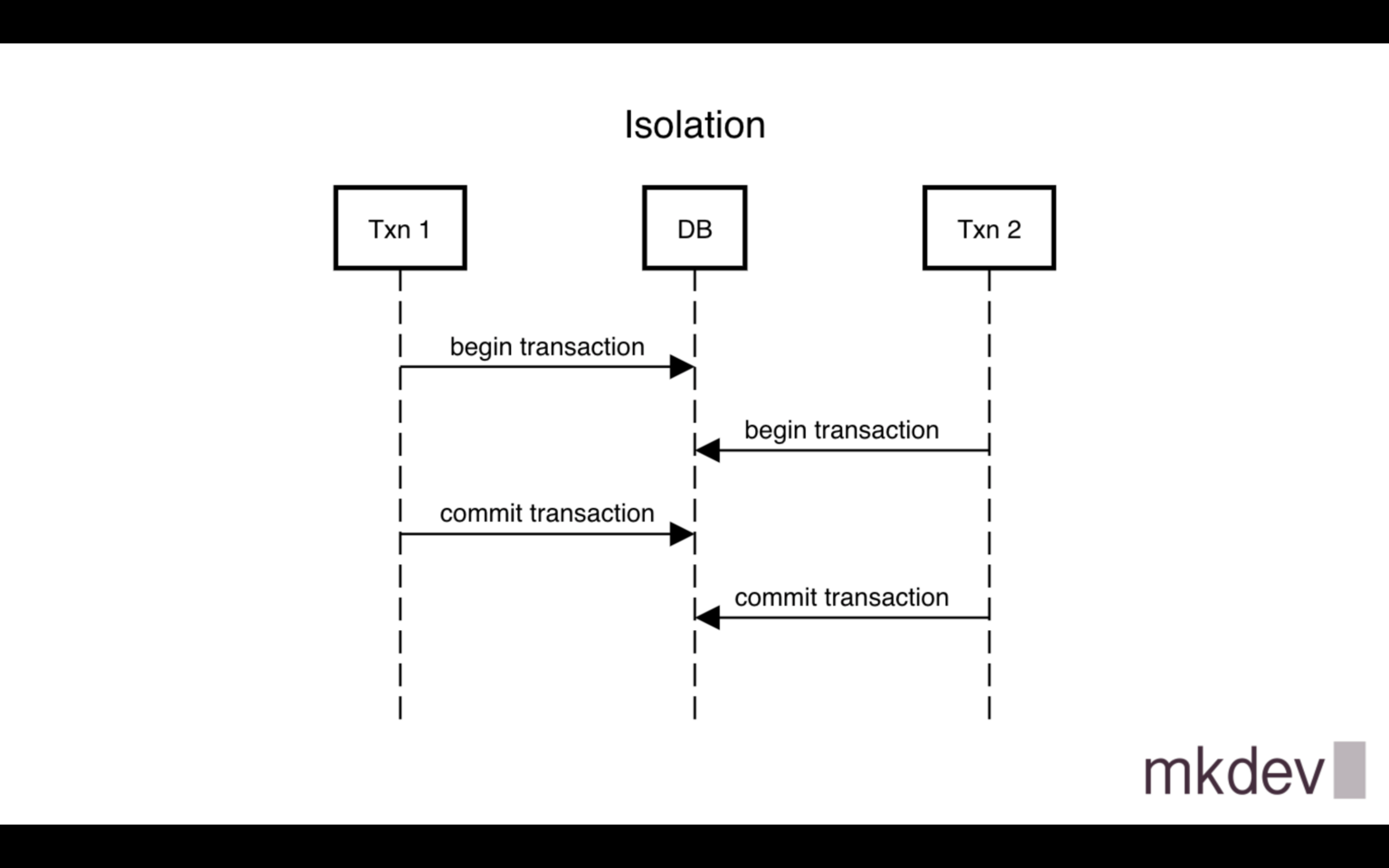

Diagram illustrating the concept of isolation in database transactions with two transactions (Txn 1 and Txn 2) interacting with a database (DB), including 'begin transaction' and 'commit transaction' actions.

The term isolation relates to how concurrent transactions affect each other.

So if you develop backend software that operates data in a complex way inside database transactions you must be aware of how transactions affect each other to prevent your code from business-logic mistakes.

In classic SQL theory isolation levels is defined in terms of what must not happen or phenomena

  • dirty read
  • lost update
  • non-repeatable read
  • phantoms
  • serialization anomaly

Let's define each of them separately.

Dirty Read

Dirty read means read uncommitted changes of other transactions. In PostgreSQL, it doesn't happen on any isolation level.

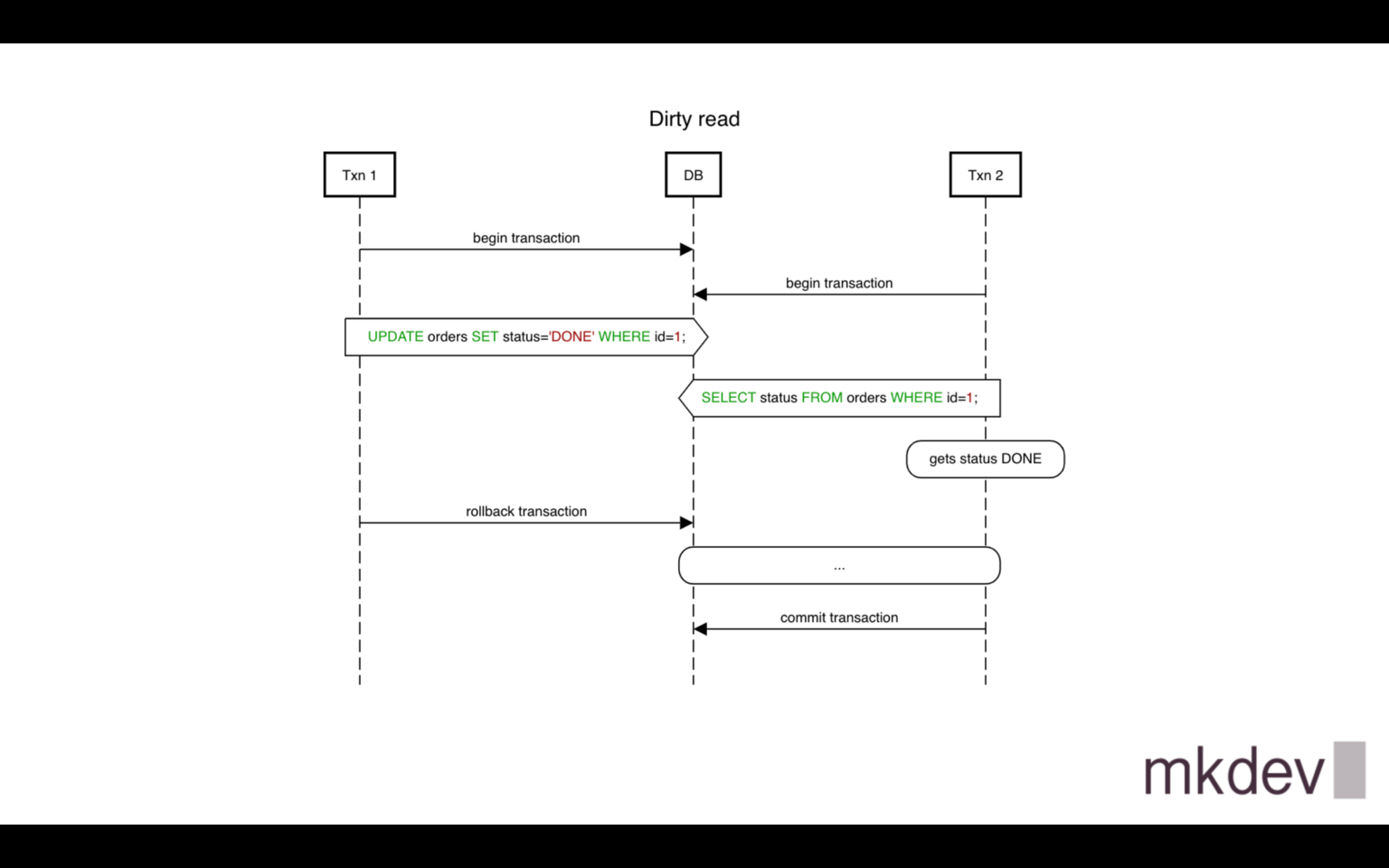

Flowchart illustrating the concept of a dirty read in database transactions, where one transaction reads uncommitted changes made by another transaction that is eventually rolled back.

For example, the first transaction updates some record, after that the second transaction reads the same record and gets updated value even if the first transaction rollbacks later.

Lost Update

A lost update is when the first transaction reads data into its local memory, and then the second transaction changes this data and commits its change. After this, the first transaction updates the same data based on what it read into memory before the second transaction was executed. In this case, the update performed by the second transaction can be considered a lost update.

For live examples, we will use PostgreSQL running via docker-compose, consisting of one table named 'orders' that is populated with several seed records.

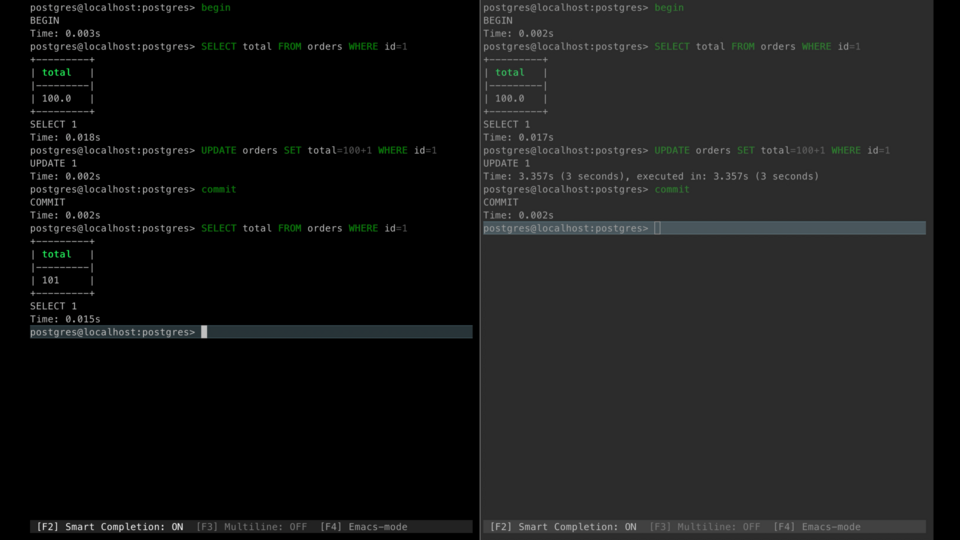

Two terminal windows showing PostgreSQL commands for selecting and updating data within a database, illustrating SQL transaction commands and output.

For example, the first transaction read order with id equals 1 and the second does the same. After that, each of them updates the total field value, and after committing both transactions only the last one will have a real effect.

Non-Repeatable Read

Non-repeatable read means that one of the rows you've queried at different stages of transaction may be updated by other transactions.

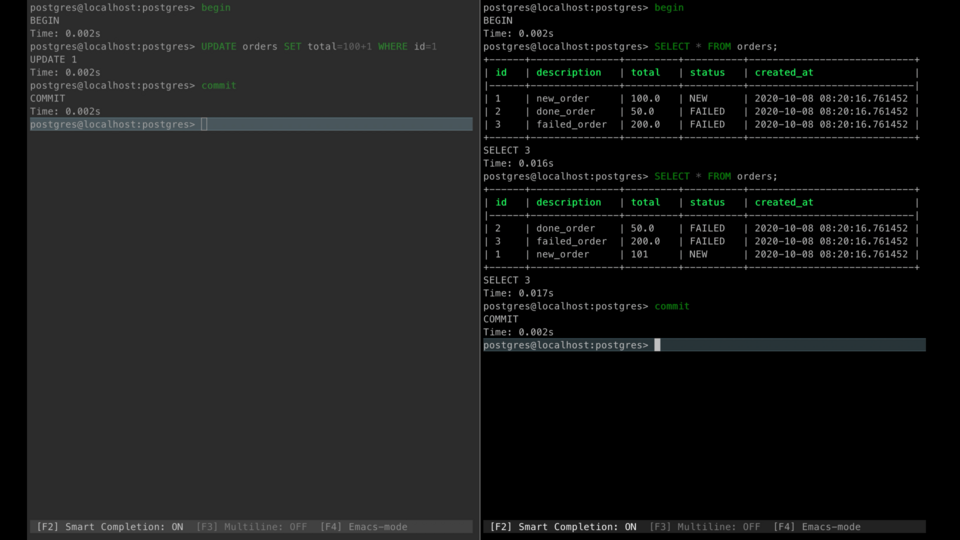

A screenshot of a PostgreSQL database command-line interface showing transaction commands and SQL queries with the resulting table outputs.

For example, one transaction reads orders. After that, another transaction modifies the total field for one of them with id equals 1 and commits. If the first transaction reads orders one more time it sees the updated record.

Phantom

Phantoms mean that some new rows are added or removed by another transaction to the set of records being read.

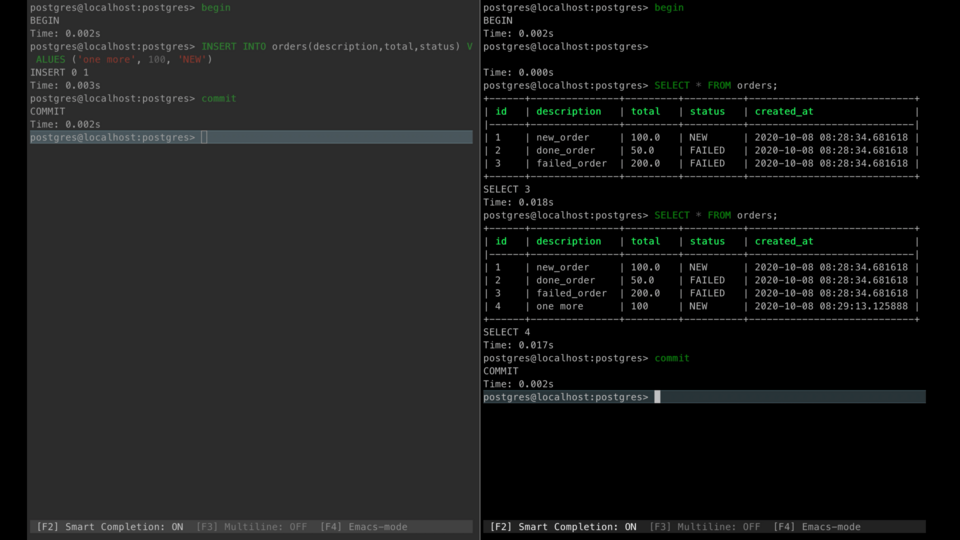

Screenshot of a PostgreSQL database interface with commands for starting a transaction, inserting data into the 'orders' table, and the resulting selection output.

For example, one transaction reads orders. After that, another transaction creates one of them and commits. If the first transaction reads orders one more time it sees the new order record that can't be seen at first read. This record is called a phantom.

Serialization Anomaly

Serialization anomaly means that the result of successfully committing a group of transactions is inconsistent with all possible orderings of running those transactions one at a time.

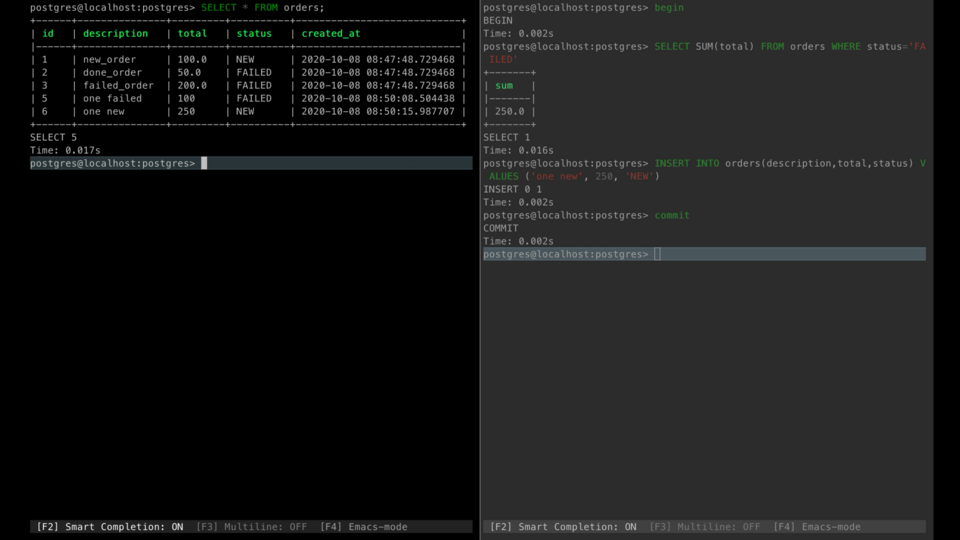

Screenshot of two terminal windows showing SQL commands executed in a PostgreSQL database; one window displays a SELECT query result and the other shows transaction commands.

For example, one transaction reads the sum of the total field for the orders with status 'NEW' and the other does the same but for status 'FAILED'. After that, each transaction creates a new record with the opposite status, but with the total field equals the sum read.

After committing both of them there is no possible sequential order of these transactions that leads to the committed result because transactions are cyclic dependent on each other result.

In classic theory, there are 4 levels of transaction isolation and exact behavior for some of them depends on the database.

In the case of PostgreSQL version 13 they are defined the following way:

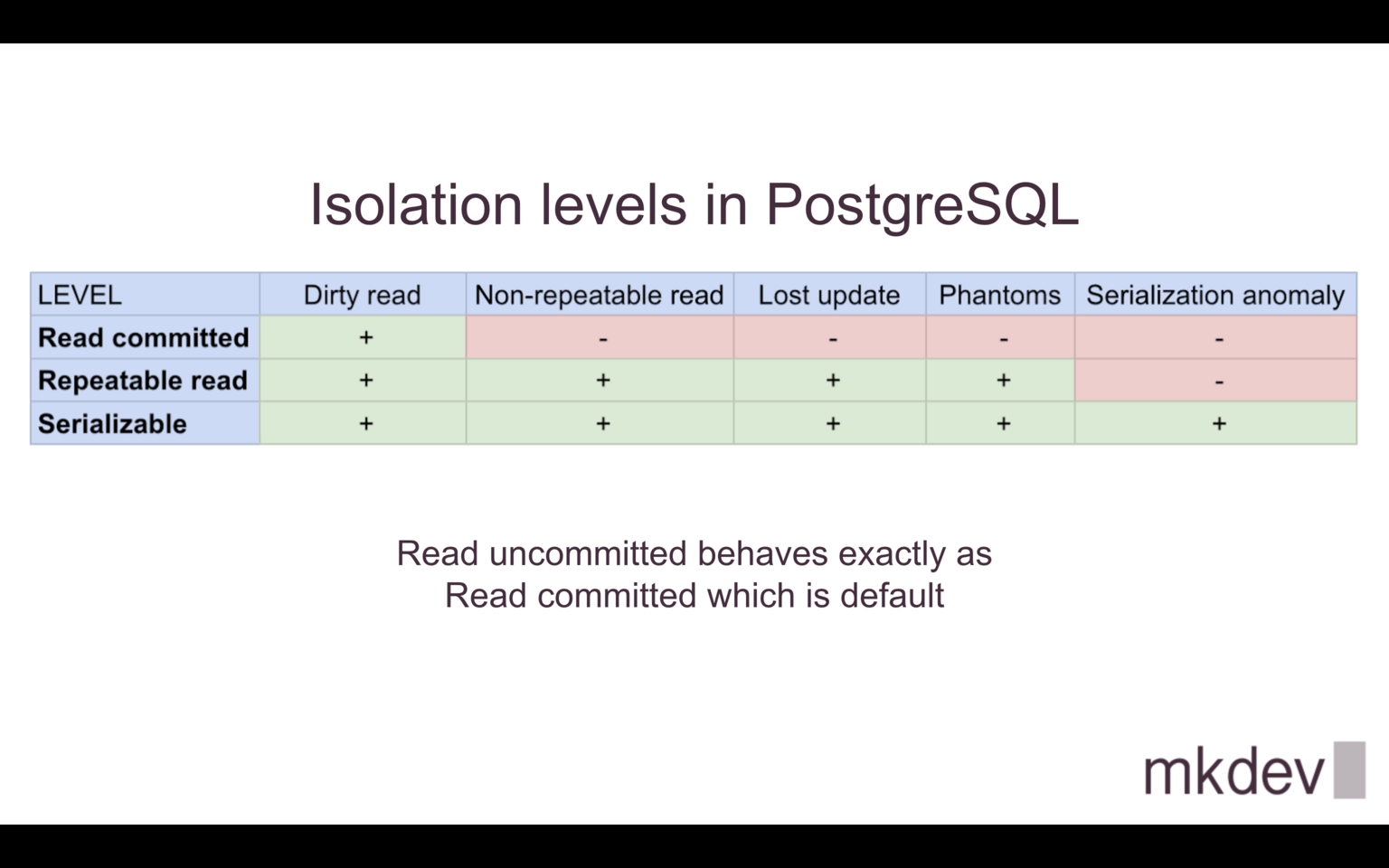

Chart comparing isolation levels in PostgreSQL with their susceptibility to phenomena like dirty read, non-repeatable read, lost update, phantoms, and serialization anomaly.

One can see plus sign if the isolation level is free of phenomena.

Repeatable Read

Repeatable read in PostgreSQL extends default Read committed level with guarantees of

  • no non-repeatable read
  • no lost updates
  • no phantoms

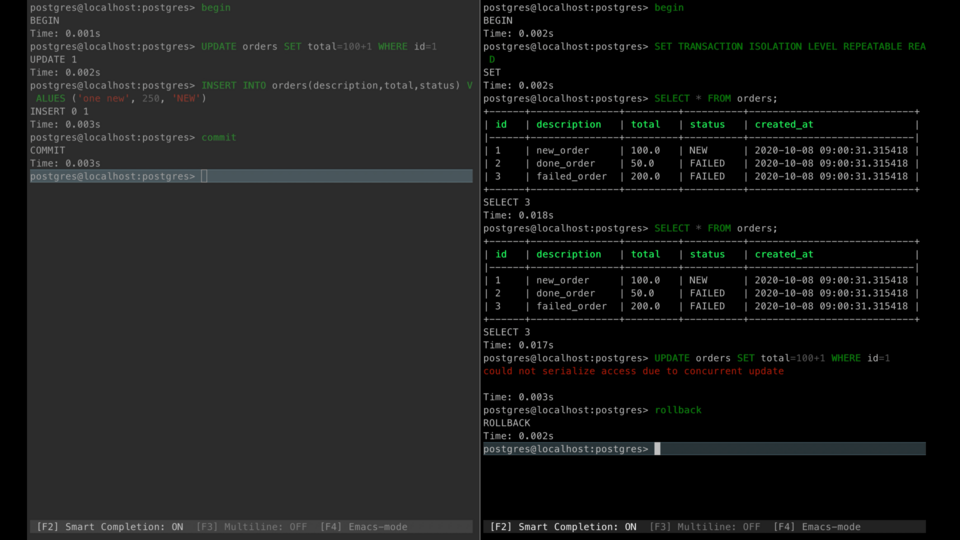

A split-screen terminal showing PostgreSQL commands, including 'BEGIN', 'UPDATE', 'INSERT', 'COMMIT', a 'SELECT' query with table output, and an 'UPDATE' error with 'ROLLBACK' on the right pane.

Let's repeat what we've done in several of our previous examples. The first transaction reads orders. The second transaction updates one of them creates one more order and commits. Now if the first transaction rereads orders it doesn't see any updates at all.

And if it tries to update already updated by another transaction record it gets an error that prevents lost updates.

Serializable in PostgreSQL extends Repeatable Read level with guarantees of

No Serialization Anomaly

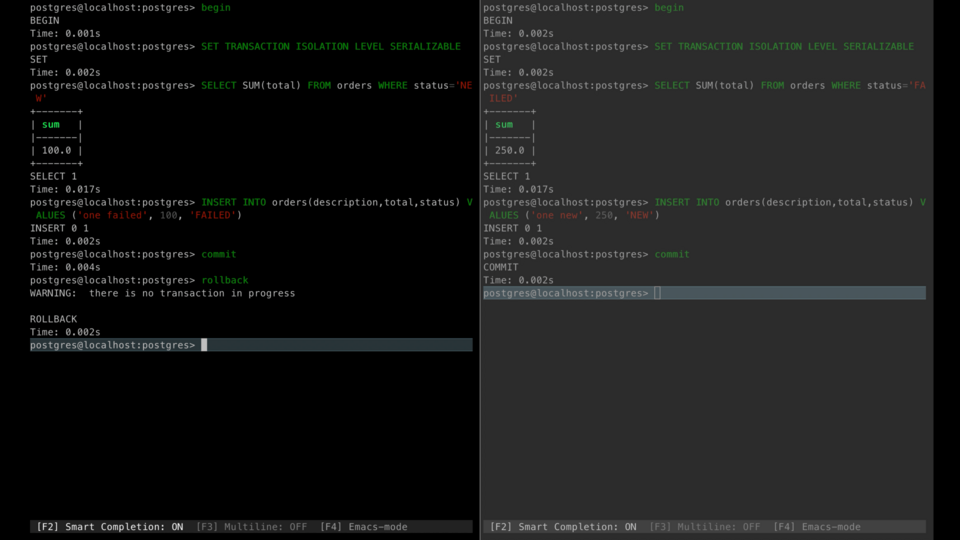

Screenshot of two terminal windows showing PostgreSQL commands related to database transactions, including 'BEGIN', 'SET TRANSACTION', 'SELECT', 'INSERT INTO', 'COMMIT', and 'ROLLBACK'.

Let's do the same stuff we did in the serialization anomaly example. After committing the first transaction, the second one gets an error when it tries to commit. This error prevents serialization anomaly.

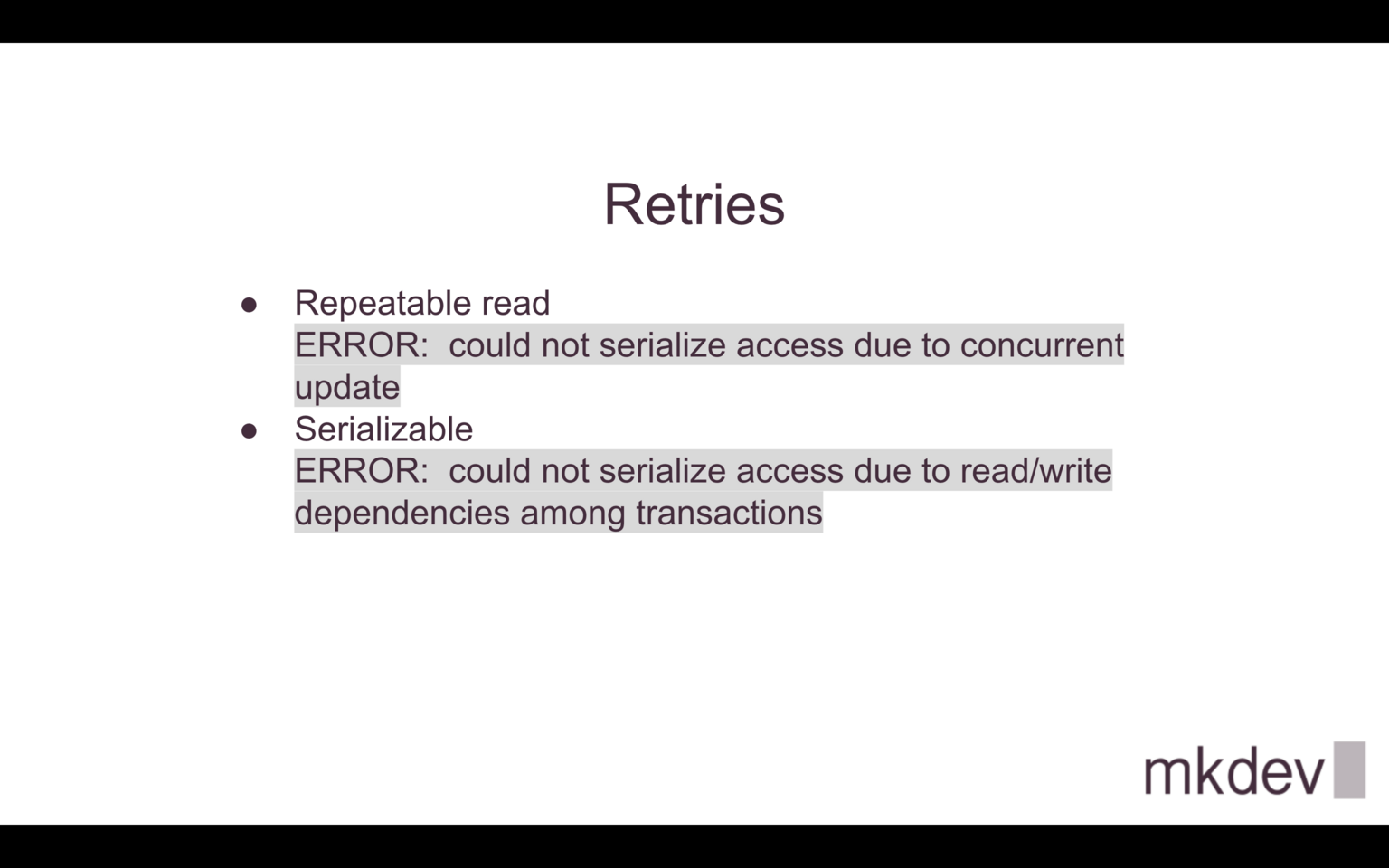

A presentation slide with the title "Retries" and two bullet points regarding database transaction errors: "Repeatable read ERROR: could not serialize access due to concurrent update" and "Serializable ERROR: could not serialize access due to read/write dependencies among transactions", with an "mkdev" logo.

One should also be aware of special errors for repeatable read and serializable isolation levels that the database return in case of impossibility to commit transaction with the chosen isolation level. In this case, it's up to your code to retry the transaction later.

Now you are aware of different isolation levels in PostgreSQL and can carefully use one of them when it's necessary or may decide to use explicit locks instead.

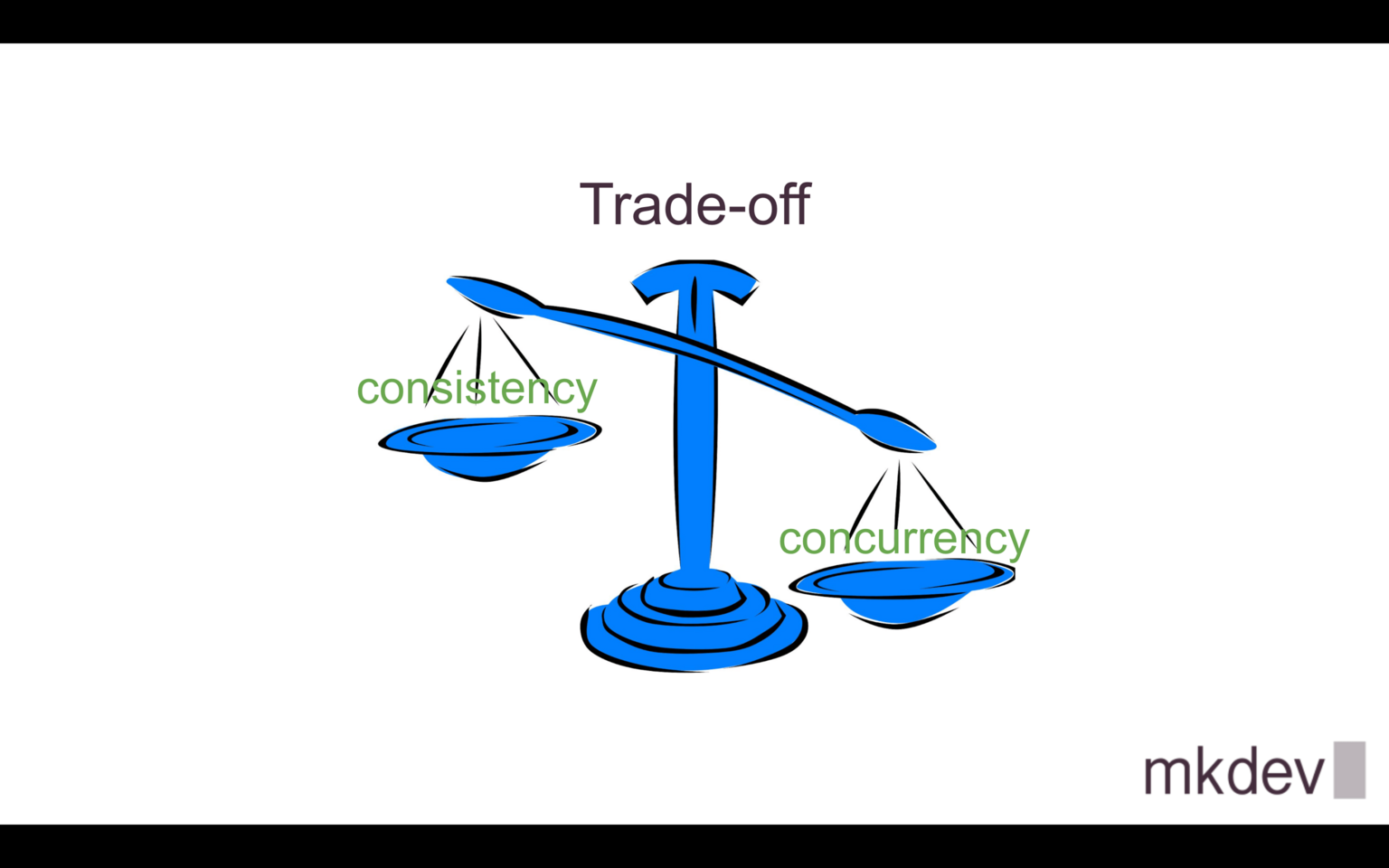

Illustration of a balance scale with the words "consistency" and "concurrency" on each scale pan, and "Trade-off" written above. The mkdev logo is at the bottom right.

You should also keep in mind that the higher the isolation level the slower concurrency performance will be, so it's always a trade-off.

It's not an end-to-end guide about all isolation behavior so for specific details please consult documentation.
