Argo CD Installation and Architecture

Illustration of a person in a vintage swimsuit and goggles diving off a boat with a stylized sea monster's tentacles emerging from the water nearby. Illustration of a person in a vintage swimsuit and goggles diving off a boat with a stylized sea monster's tentacles emerging from the water nearby.

To start using Argo CD, we need to install it.

There are multiple ways you can do this. We are going to use Helm, our recommended package manager for Kubernetes-based applications. Note that Argo CD Helm Charts are community-maintained, even though they are located inside the official Argo CD GitHub organization.

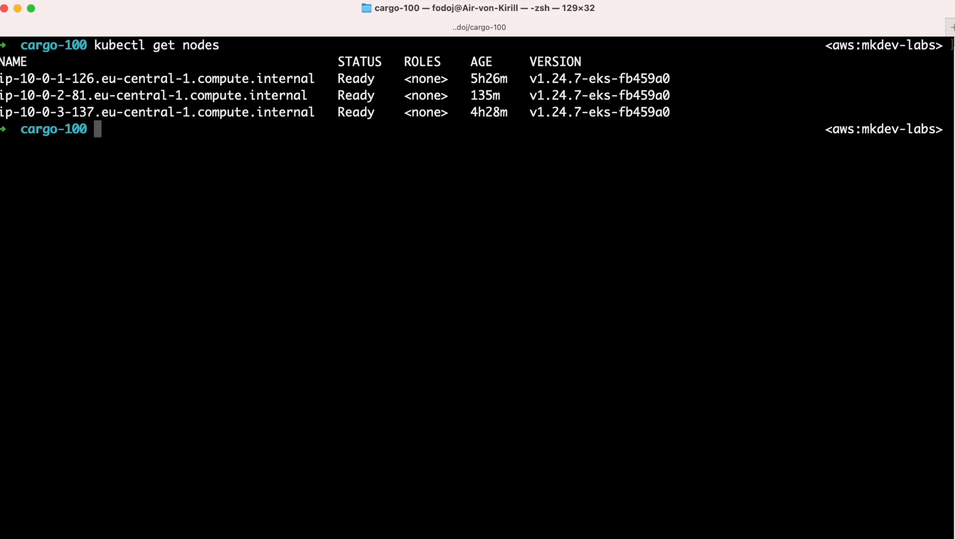

Screenshot of a computer terminal with the output of the command 'kubectl get nodes', showing three nodes in a Kubernetes cluster with their statuses, roles, ages, and versions.

Here I have a Kubernetes cluster - it’s running inside AWS EKS service, but we are not going to use anything too specific to AWS.


Let’s first add Argo CD Helm repository:

helm repo add argo

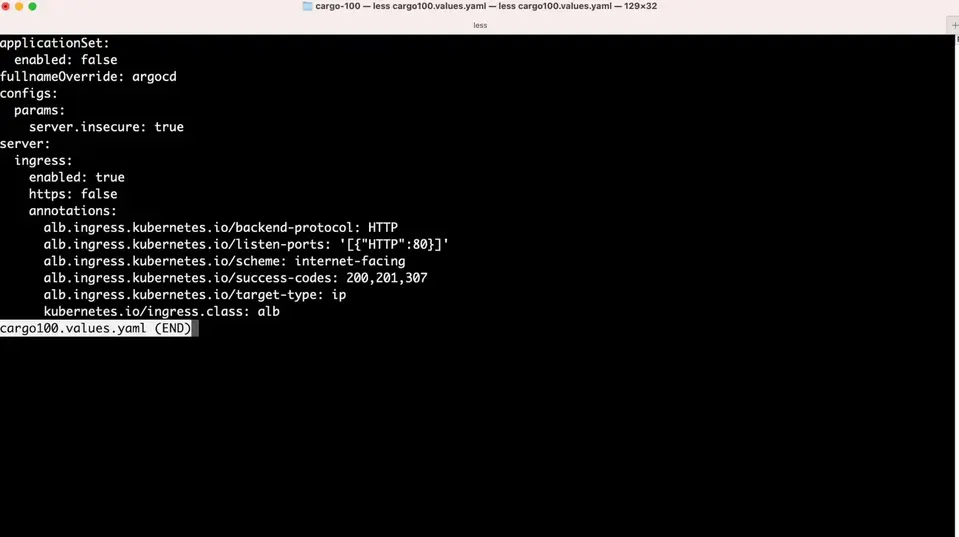

I’ve prepared a values file that overrides some of the configuration options. It’s not much - I disable an application set controller (more on that one in another article), disable TLS (don’t do that in production), and specify how to create an ingress for the Argo CD server.

Screenshot of a computer terminal showing a YAML configuration file related to Kubernetes, with parameters for application settings and ingress annotations.

I am using AWS’s Load Balancer controller for ingress - basically, it will create a new AWS ALB, which will let me access Argo CD over the internet. If you are using AWS and Kubernetes, but don’t know much about this Load Balancer Controller, here's a link to our free webinar about this tool.

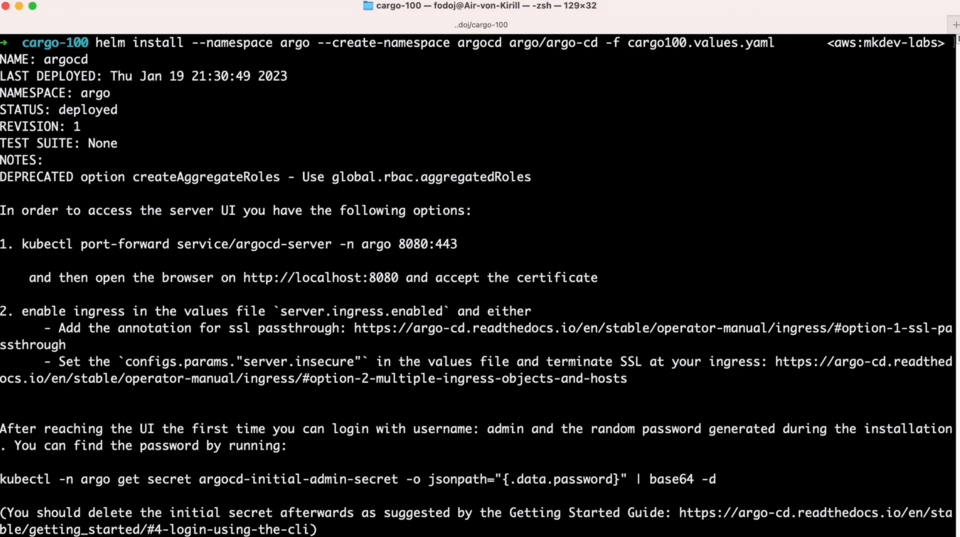

Screenshot of a computer terminal after installing ArgoCD with helm, including instructions for accessing the Argo CD user interface and retrieving the initial admin password.

With this values file, I can run helm install --namespace argo argocd argo/argo-cd --create-namespace -f cargo101.values.yaml. Let’s look at what this Helm Chart created for us.

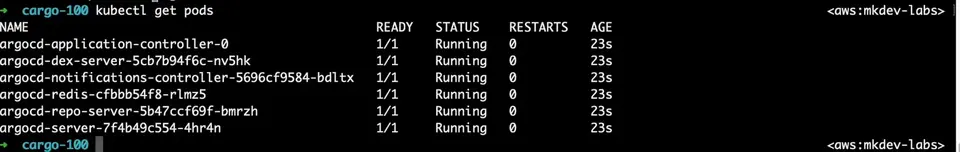

kubectl get pods

There are 6 components that are included in the default Argo CD installation. 3 of them: server, repo server and application controller, are the core of Argo CD. They are responsible for the API, Web UI, for synchronizing git repositories, generating Kubernetes manifests, diffing and rolling out changes.

A terminal screenshot displaying the output of 'kubectl get pods' with several pods named 'argocd-*' running successfully with a status of 'Running' and no restarts, all with an age of 23 seconds.

Notifications Controller is a separate component, responsible for sending notifications about various Argo CD events to Slack, MS Teams and other messaging systems.

Argo CD Dex is actually just Dex, an identity provider, responsible for authentication for Argo CD. If you want to configure, for example, Okta or GitHub login, this authentication will happen through Dex. I highly recommend checking Dex out, as it’s a great utility for adding authentication to your applications.

Finally, Redis is here just for caching.

Notifications Controller, Redis and Dex are completely optional - we could configure Helm Release to skip installing those components all together. There are a few other optional components around Argo CD, like the aforementioned Application Set controller - those are a bit advanced and won’t be covered in this lightning course.

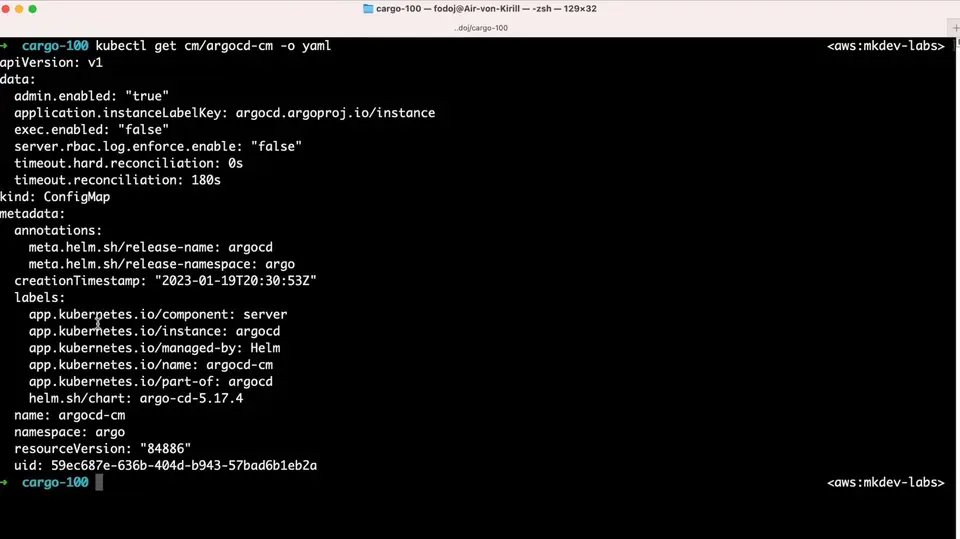

You might have noticed, that there is no database running for Argo CD. The reason for this is that Argo CD is using Kubernetes API as its database. All the Argo CD specific objects are implemented as Custom Resource Definitions, and Argo CD configuration is stored inside ConfigMaps and Secrets. We can check the current configuration by running kubectl get cm/argocd-cm -o yaml.

Screenshot of a computer terminal displaying command-line interface with executed 'kubectl' command to get details of a ConfigMap in YAML format, related to Argo CD, a continuous delivery tool for Kubernetes.

Argo CD is completely Kubernetes-native, it absolutely depends on Kubernetes features, and it’s more or less impossible to run it outside a Kubernetes cluster.

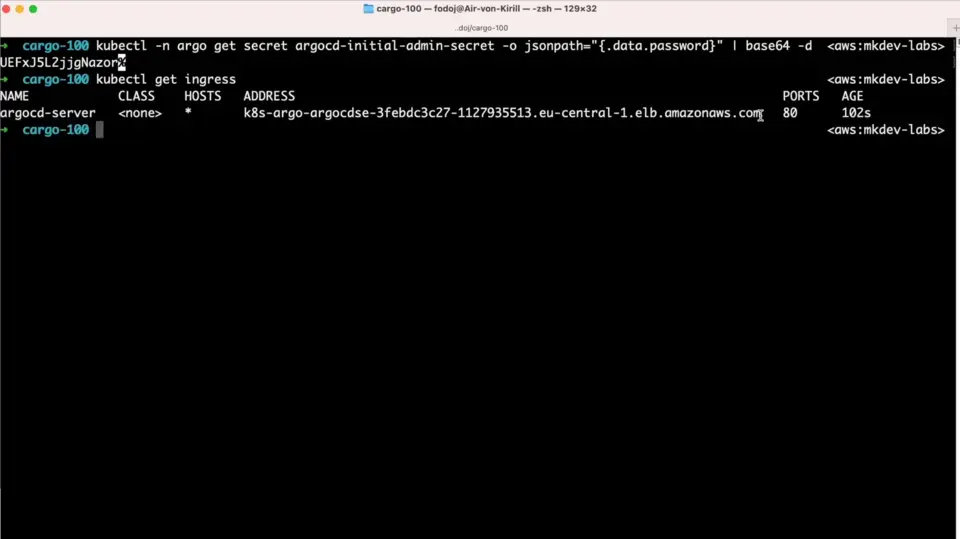

Finally, now that installation is complete, I can copy and paste this command to get an initial admin password:

kubectl -n argo get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

I will also get a DNS name of my load balancer by running kubectl get ingress.

A computer terminal display showing command line actions related to Kubernetes, including retrieval of a secret from Argo CD and listing ingress resources, with an AWS ELB address visible.

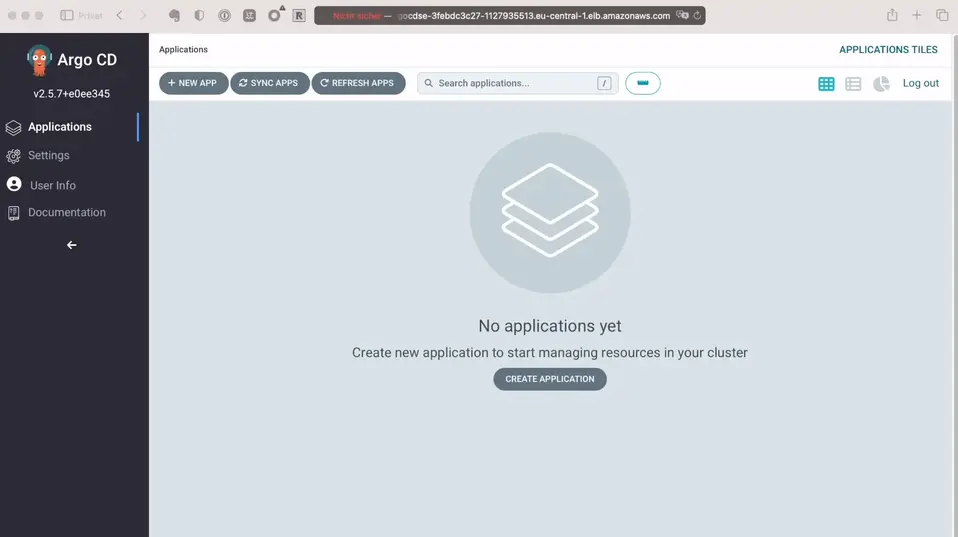

Now let me go to the browser, open that url and log in with the username admin and the password I just got via a command line. Seems like we have Argo CD up and running!

Screenshot of Argo CD web interface with no applications, containing a message "No applications yet" and button "CREATE APPLICATION", version number v2.5.7 on the sidebar.

In the next lesson, we are going to talk about two important parts of Argo CD: Clusters and Repositories.
